Hardware & Platform | ARQ Controls

Gateway Pro

Built for multi-asset sites

Quad-core ARM, expandable I/O, RS485 and CAN. For multi-line plants, large solar farms, and water systems with a dozen pump stations.

See photos & full specsHide photos & specs

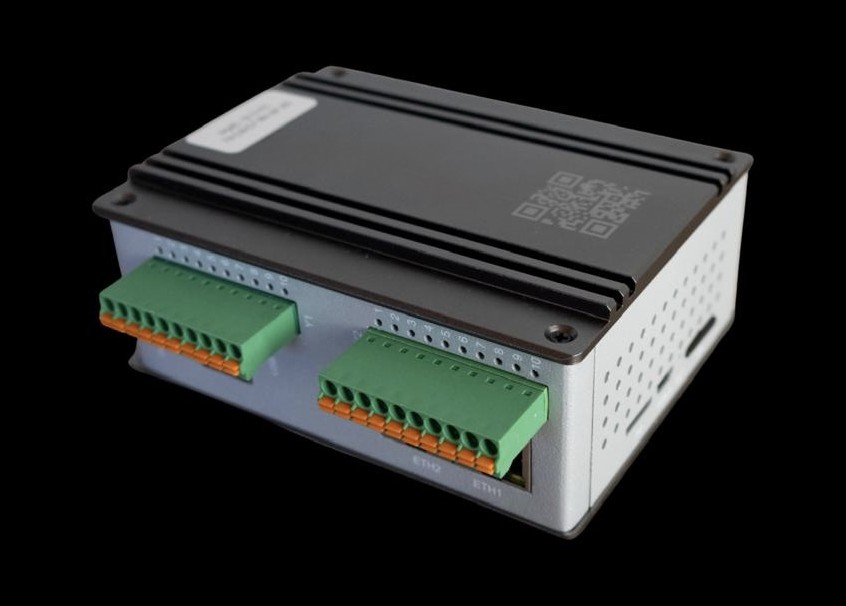

ARQ Gateway Pro, DIN rail industrial gateway with dual terminal blocks and dual Ethernet ports

CPU Quad-core ARM, 1.8 GHz, built for continuous operation
Memory 4 GB RAM, 32 GB onboard storage
Network Up to 3 Ethernet ports, Wi-Fi or LTE option
Serial RS485 and CAN, plus USB and HDMI
OS Linux (Ubuntu or Debian), open for custom work
Expansion Configurable digital and analog I/O for almost any signal
Mounting DIN rail or wall mount, aluminum housing

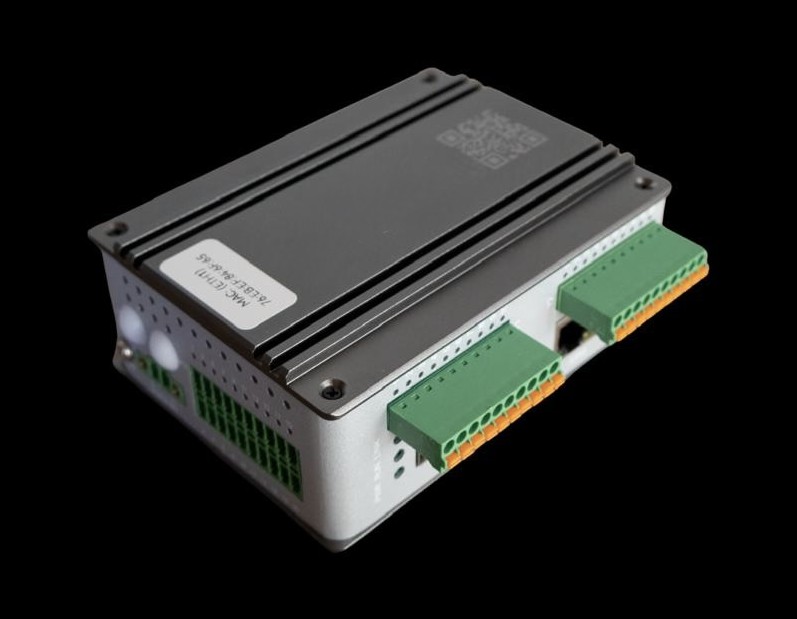

ARQ Gateway Pro rear panel showing MAC label, dual terminal blocks, and Ethernet port

The workhorse. Built for sites with more assets, more I/O, and more going on. Runs Linux, so it can carry custom logic when a site needs it.

Gateway Mini

Built for fast, simple installs

Ethernet-first, touchscreen commissioning, no laptop needed. For single-site jobs and rollouts.

See photos & full specsHide photos & specs

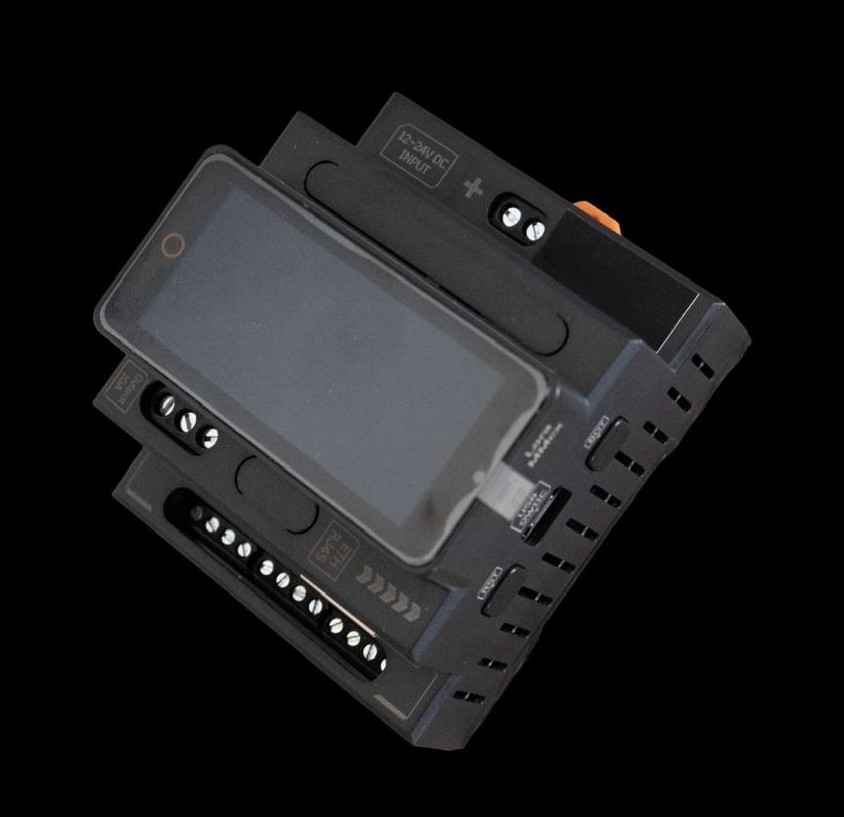

ARQ Gateway Mini, compact DIN rail gateway with built-in touchscreen for on-device commissioning

Setup Built-in touchscreen for on-device commissioning, no laptop needed
Network Ethernet-first for a stable connection, Wi-Fi commissioning and Wi-Fi-only mode when needed
Protocols Modbus RTU and Modbus TCP polling for meters, inverters, batteries, and other devices
Control Built-in relay output, switched right from the dashboard
Data Cloud config push, local browser portal for diagnostics, live MQTT streaming
Radio LoRa available as an option
Form factor Compact DIN rail module, drops into a panel without eating the whole enclosure

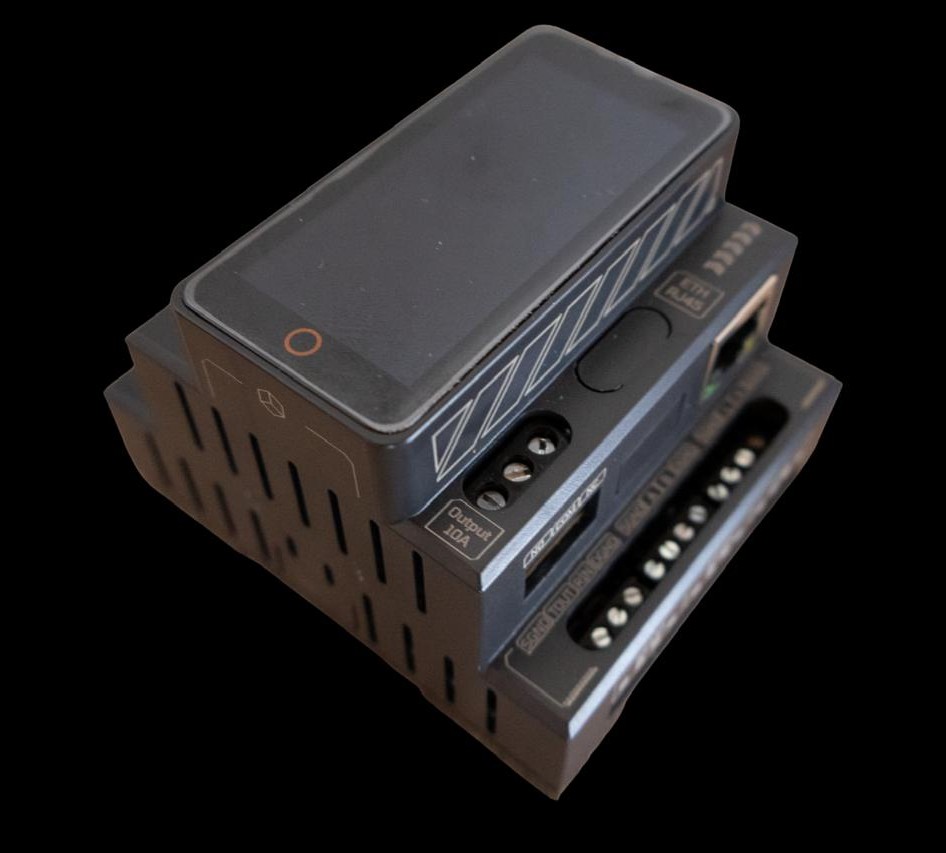

ARQ Gateway Mini terminal and Ethernet connections, showing relay output and RJ45 port

The quick install. Walk up, wire it in, commission it from the screen on the unit. Built for jobs where you don't want a laptop and a network engineer at every stop.

Compatible hardware

If it outputs a signal, we can probably read it

Wired or wireless, analog or digital. Modbus, RS232, RS485, Ethernet — if your equipment already talks one of these, we're already compatible.

Treon wireless vibration sensors (Wirepas mesh)
Tuya and Inkbird temperature/humidity sensors
Any Modbus device on RS232, RS485, or Ethernet already on your floor
4-20 mA and voltage analog signals
Strain gauge and RTD instrumentation
ATEX and hazardous-area hardware for oil & gas, chemical, and mining sites

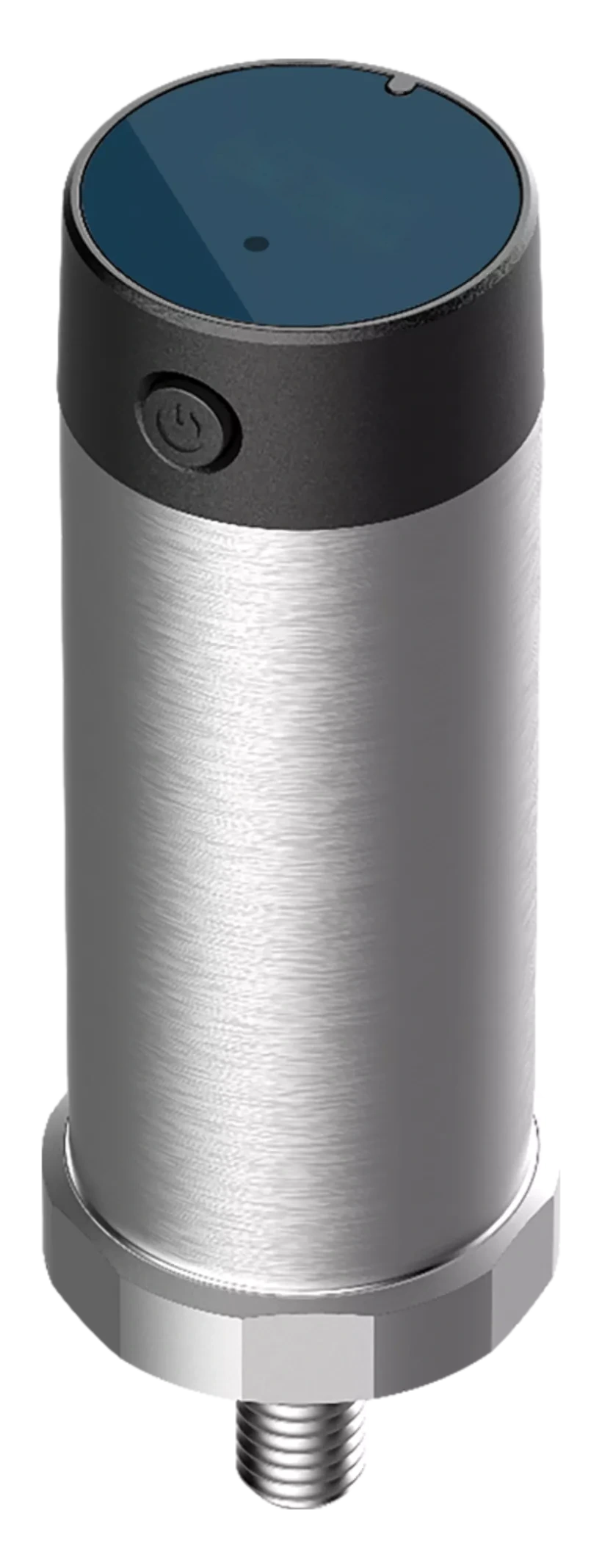

Wireless vibration

Battery-powered, mesh-networked, straps on without new cabling.

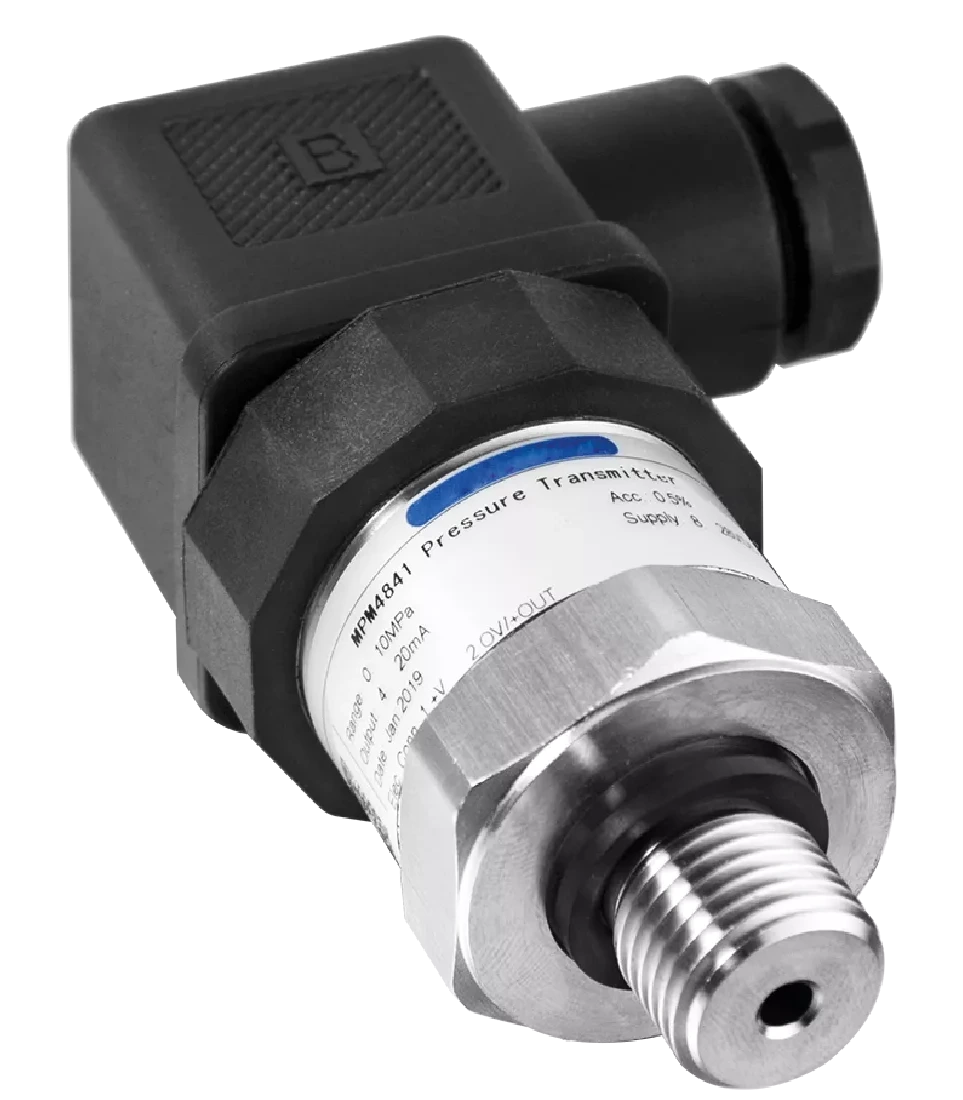

Pressure

Standard 4-20 mA analog process signals, straight into the gateway.

Hardware agnostic. Any analog or digital asset can be added, monitored, or controlled. Load cells, inclinometers, RTDs, flow, level, current — if it outputs a signal, we can probably read it. If it accepts a command, we can probably send it.

Connect

The gateway speaks the languages your equipment already speaks. Wired analog, Modbus, wireless vibration and temperature nodes. No rip and replace.

Monitor

Every reading lands on one dashboard with custom widgets, thresholds, and alerts that reach your phone before a problem reaches your product.

Act

Control outputs remotely, automate responses, and get plain-language AI reports that tell you what changed and what to do about it.

Built for

Industrial teams and solar owners

Plant floor teams

Deploys in hours, not months, at a fraction of legacy SCADA cost. Your maintenance team sees everything without babysitting six vendor apps. Role-based access, encrypted end to end, API for your BI tools.

Solar owners and O&M

If the company that installed your solar system is gone, ARQ picks up the monitoring. See production, catch faults, and know your system is earning what it should.

Two gateways. Every port that matters.
